What's reinforcement learning?

End-to-end learning for Sequential Decision Making

What does end-to-end mean for

Sequential Decision Making?

More formally!

Comparison with deep learning framework

Short Summary (DRL)

• RL originates from the need for sequential decision making process
• DL is analogous to one state of the "sequence"
• DL allows RL to solve complex problems end-to-end

Mathematical Notations

The goal of reinforcement learning

Categorization

1. Value-based: Indirectly optimize policy via estimation of value function
2. Policy gradients: Directly optimize policy by calulating gradient of policy
3. Actor-critic: Combination of above two

Value Iteration

Policy Gradients

Policy Gradients

$ U( \theta )=E[ \sum_{t=0}^{H}R(s_{t},u_{t});\pi_{\theta}]=\sum_{ \tau }P(\tau;\theta)R(\tau)$

$\bigtriangledown _{\theta}U( \theta )= \bigtriangledown _{\theta}\sum_{ \tau }P(\tau;\theta)R(\tau)=\sum_{ \tau }\bigtriangledown _{\theta}P(\tau;\theta)R(\tau) $ $ =\sum_{ \tau }\frac{P(\tau;\theta) }{P(\tau;\theta) } \bigtriangledown _{\theta}P(\tau;\theta)R(\tau) $ $=\sum_{ \tau }P(\tau;\theta)\frac{\bigtriangledown _{\theta}P(\tau;\theta) }{P(\tau;\theta) }R(\tau) $ $ =\sum_{ \tau }P(\tau;\theta)\bigtriangledown _{\theta}logP(\tau;\theta)R(\tau) $ $= \frac{1}{m} \sum_{i=1}^{m}\bigtriangledown _{\theta}logP(\tau^{(i)};\theta)R(\tau^{(i)})$

Policy Gradients

# Given:
# actions - (N*T) x Da tensor of actions
# states - (N*T) x Ds tensor of states
# q_values – (N*T) x 1 tensor of estimated state-action values
# Build the graph:
logits = policy.predictions(states) # This should return (N*T) x Da tensor of action logits
negative_likelihoods = tf.nn.softmax_cross_entropy_with_logits(labels=actions, logits=logits)
weighted_negative_likelihoods = tf.multiply(negative_likelihoods, rewards)
loss = tf.reduce_mean(weighted_negative_likelihoods)
gradients = loss.gradients(loss, variables)


$\frac{1}{m}\sum_{i=1}^{m}\sum_{t=1}^{T}\bigtriangledown _{\theta}log(\pi_{a_{i,t}}|s_{i,t};\theta)\widehat{R_{i,t}}$

Actor Critic

What have we come so far?

Getting Serious

Look Before You Leap: Bridging Model-Free and Model-Based Reinforcement Learning for Planned-Ahead Vision-and-Language Navigation

Task description

Model Pipeline

Components

							# Recurrent policy model
							e(t,i)=tf.matmul(h(t-1).transpose(),w(i))
							a(t,i)=tf.exp(e(t,i))/tf.reduce_sum(tf.exp(e(t,k)), axis=1)
							c(t)=tf.reduce_sum(a(t,i)*w(i))
							h(t)=LSTM(h(t-1),[c(t),s(t),a(t-1)])

							# Environment model
							s(t+1)=fransition(fproj(st,at))
							r(t+1)=freward(fproj(st,at))


Model Learning

• Two step training process

  • Pretrain environment model
  • Freeze environment model and train policy model

							# Imitation learning
							Train environment model with Randomized teacher poclicy;
							Pick demonstration policy with P=0.95;
							Pick Bernouli Meta policy with P=0.05;

							l_transition=E[s'(t+1)-s(t+1)]
							l_reward=E[r'(t+1)-r(t+1)]

							# Policy learning
							r(st,at)=distance(s(t))-distance(s(t+1))
							R(st,at)=discounted total sum of r
							Perform REINFORCE algorithm on R


Result

Summary

Competitive Self-Play

Motivation and Contribution

• Auto-curricula induced by competitive self-play
• Emergent behavior induced by this auto-curricula
• Successful transfer learning from this auto-curricula

Training Pipeline

• Shaped dense reward for locomotion skill learning
• Two separate PPO optimization process
• Dense reward annealing and Opponent sampling

A brief intro about TRPO & PPO

• PPO inherits from TRPO and simplifies
• PPO is a model-free off-policy actor-critic method
• PPO can solve continuous control problem

TRPO as constrained optimization

TRPO objective & constraint

TRPO pseudo-code

Extensions

• Hide-and-Seek extends Self-Play into multi-agent scenario
• Hide-and-Seek adds an exploration term
• Hide-and-Seek uses a more comprehensive policy network

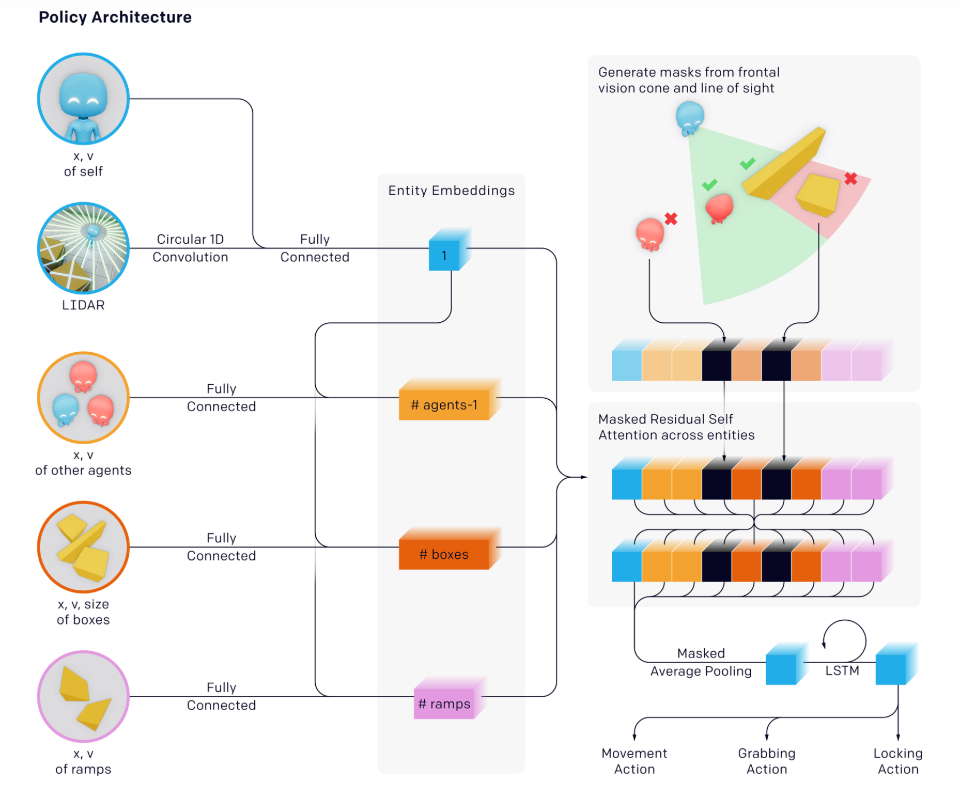

Policy-Network Overview

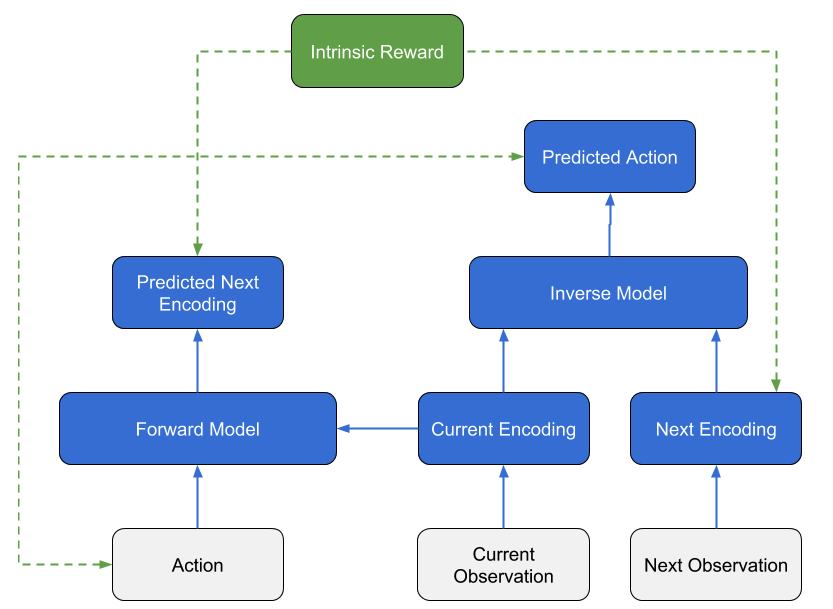

Intrinsice Module

Summary

• More "comprehensive reward"
• More "data driven"
