Reinforcement Learning

and its interesting applications

Created by Jiali Duan on Oct.10, 2018

What's reinforcement learning?

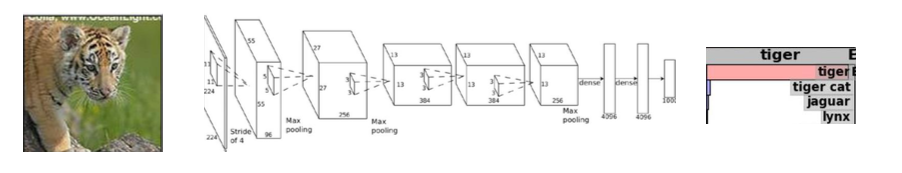

End-to-end learning for Sequential Decision Making


Down arrow

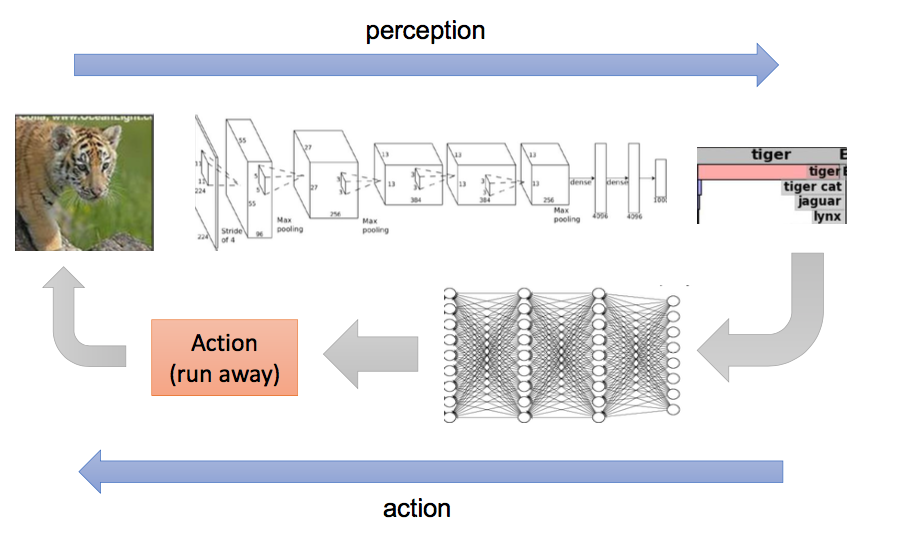

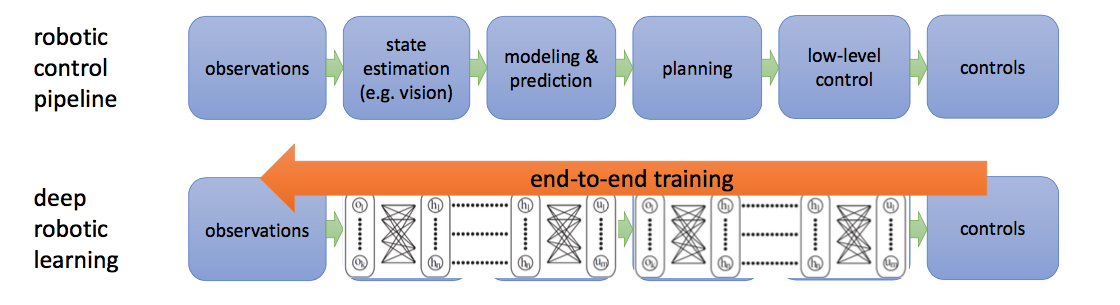

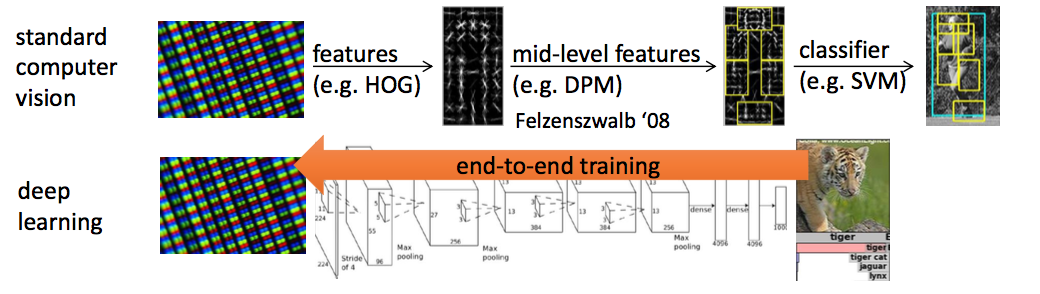

What does end-to-end mean for

Sequential Decision Making?

Down arrow

More formally!

Comparison with deep learning framework

Up arrow

Up arrow

Short Summary (DRL)

  • RL originates from the need for sequential decision making process
  • DL is analogous to one state of the "sequence"
  • DL allows RL to solve complex problems end-to-end

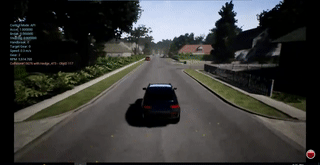

Why do we care about it now?

Up arrow

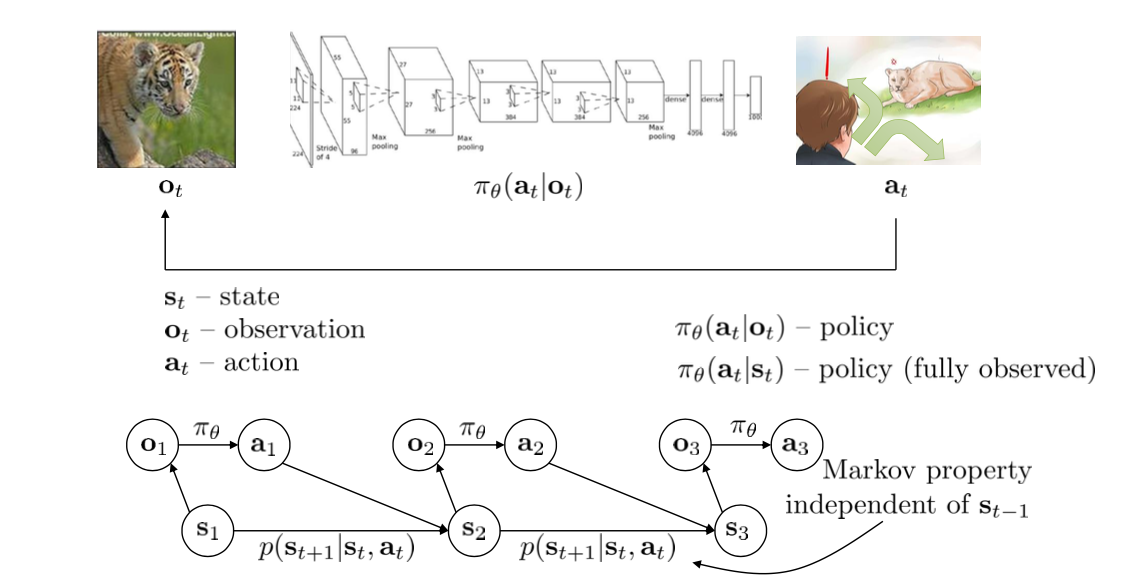

Mathematical Definitions

Up arrow

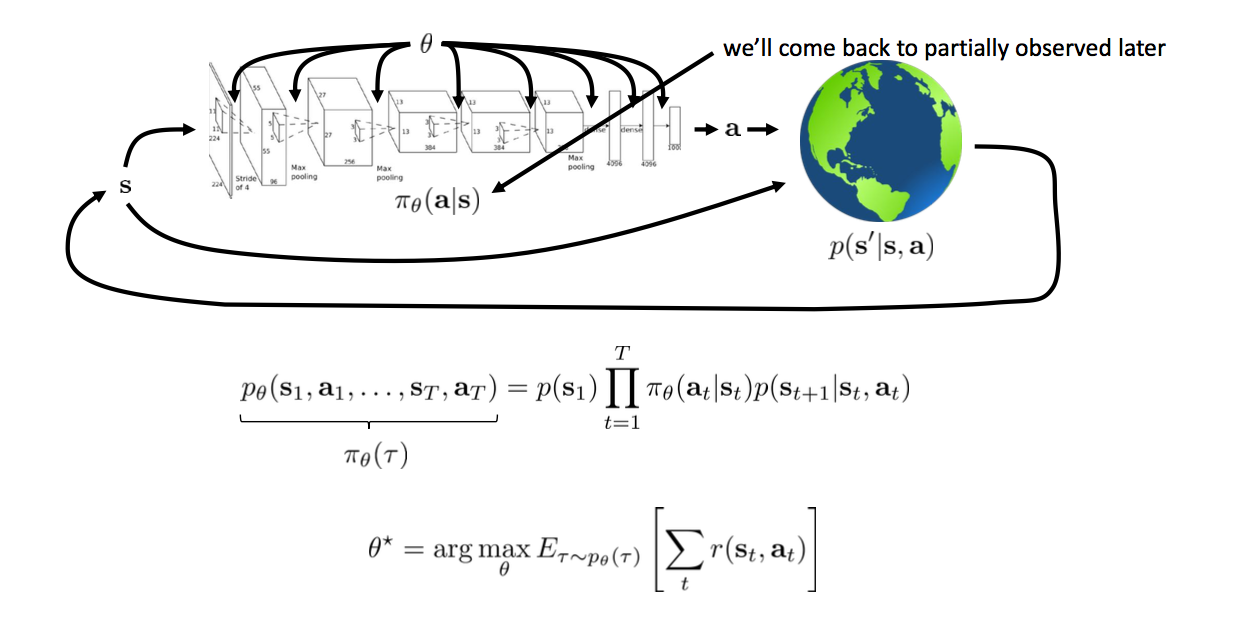

The goal of reinforcement learning

Up arrow

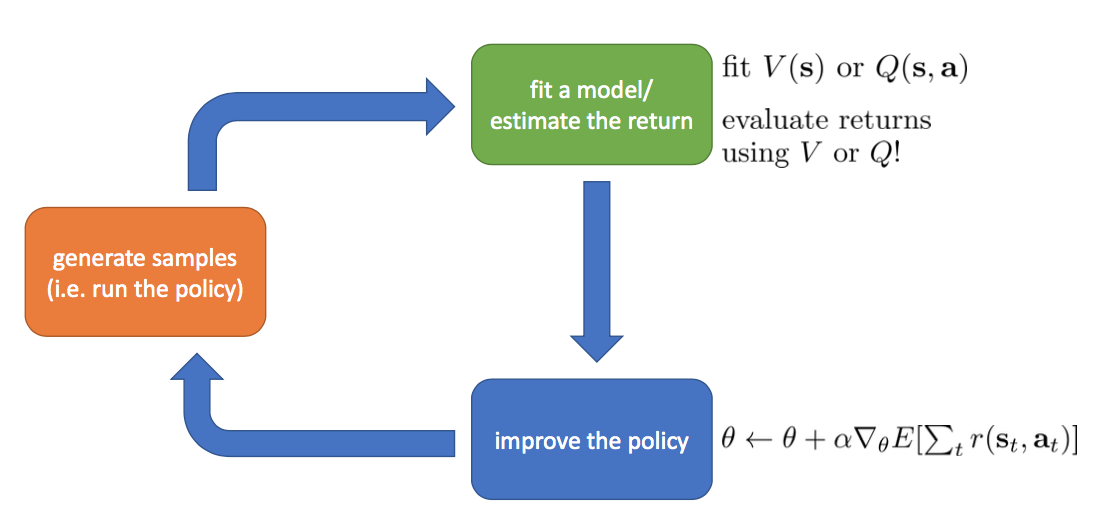

Toy Examples

  1. Value-based: Indirectly optimize policy via estimation of value function
  2. Policy gradients: Directly optimize policy by calulating gradient of policy
  3. Actor-critic: Combination of above two

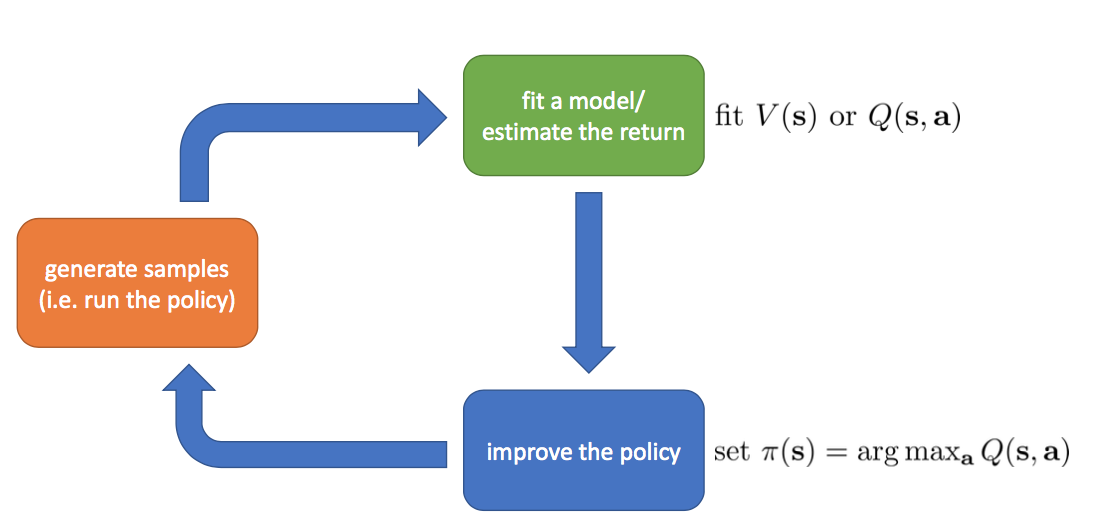

Value Iteration

Up arrow

$V^{*}_{k}(s)\leftarrow max_{a}\sum_{s'}P(s'|s,a)(R(s,a,s')+\gamma V^{*}_{k-1}(s))$

$\pi_{k}^{*}(s)\leftarrow argmax_{a}V^{*}_{k}(s)$

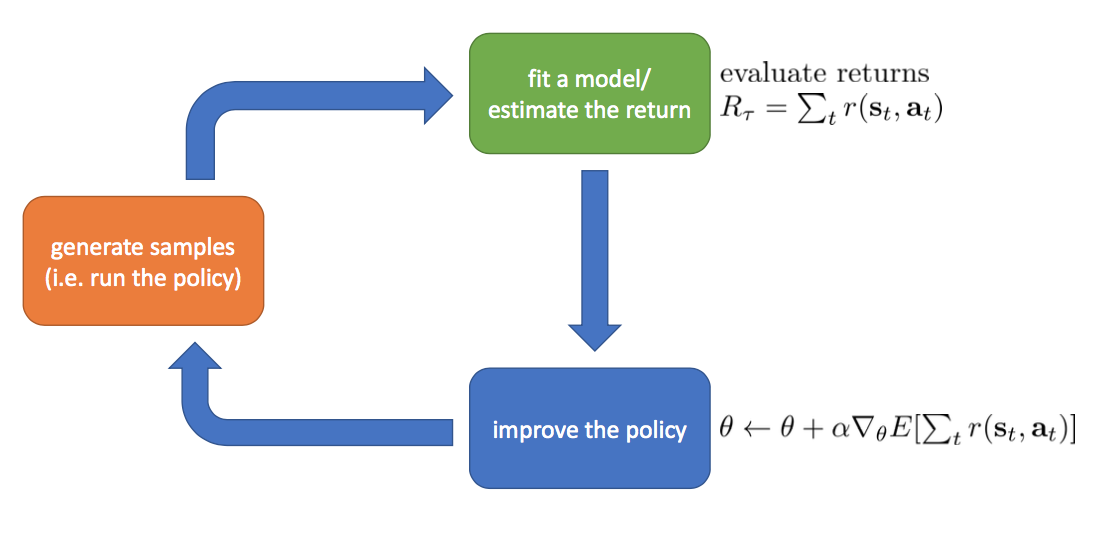

Policy Gradients

Up arrow

Policy Gradients


$ U( \theta )=E[ \sum_{t=0}^{H}R(s_{t},u_{t});\pi_{\theta}]=\sum_{ \tau }P(\tau;\theta)R(\tau)$


$\bigtriangledown _{\theta}U( \theta )= \bigtriangledown _{\theta}\sum_{ \tau }P(\tau;\theta)R(\tau)=\sum_{ \tau }\bigtriangledown _{\theta}P(\tau;\theta)R(\tau) $ $ =\sum_{ \tau }\frac{P(\tau;\theta) }{P(\tau;\theta) } \bigtriangledown _{\theta}P(\tau;\theta)R(\tau) $ $=\sum_{ \tau }P(\tau;\theta)\frac{\bigtriangledown _{\theta}P(\tau;\theta) }{P(\tau;\theta) }R(\tau) $ $ =\sum_{ \tau }P(\tau;\theta)\bigtriangledown _{\theta}logP(\tau;\theta)R(\tau) $ $= \frac{1}{m} \sum_{i=1}^{m}\bigtriangledown _{\theta}logP(\tau^{(i)};\theta)R(\tau^{(i)})$

Policy Gradients


# Given:
# actions - (N*T) x Da tensor of actions
# states - (N*T) x Ds tensor of states
# q_values – (N*T) x 1 tensor of estimated state-action values
# Build the graph:
logits = policy.predictions(states) # This should return (N*T) x Da tensor of action logits
negative_likelihoods = tf.nn.softmax_cross_entropy_with_logits(labels=actions, logits=logits)
weighted_negative_likelihoods = tf.multiply(negative_likelihoods, rewards)
loss = tf.reduce_mean(weighted_negative_likelihoods)
gradients = loss.gradients(loss, variables)


$\frac{1}{m}\sum_{i=1}^{m}\sum_{t=1}^{T}\bigtriangledown _{\theta}log(\pi_{a_{i,t}}|s_{i,t};\theta)\widehat{R_{i,t}}$

Actor Critic

Up arrow

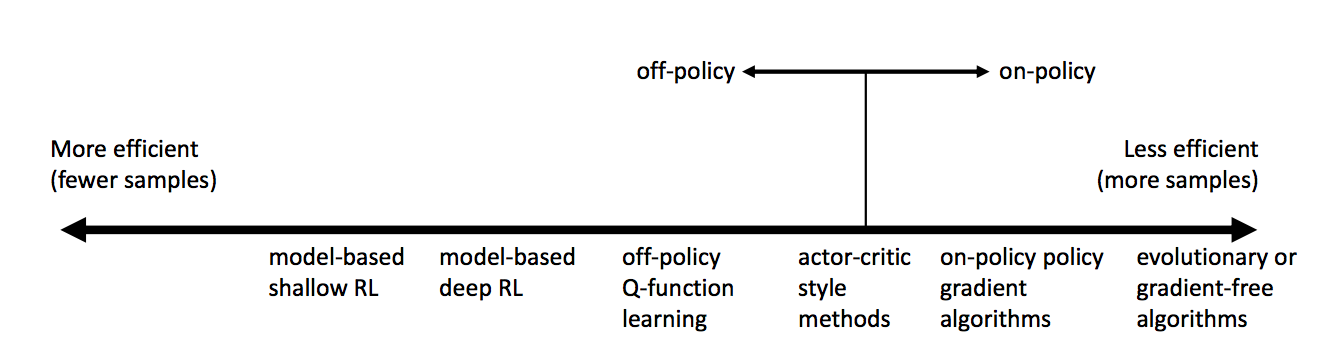

What have we come so far?

Up arrow

Getting Serious

Look Before You Leap: Bridging Model-Free and Model-Based Reinforcement Learning for Planned-Ahead Vision-and-Language Navigation

  • Model-free methods lacks generalization ability
  • Propose to augment "imagination" via a look-ahead policy module
  • Integrate vision with language instruction for indoor navigation

Task description

Up arrow

Components

Up arrow Up arrow

							# Recurrent policy model
							e(t,i)=tf.matmul(h(t-1).transpose(),w(i))
							a(t,i)=tf.exp(e(t,i))/tf.reduce_sum(tf.exp(e(t,k)), axis=1)
							c(t)=tf.reduce_sum(a(t,i)*w(i))
							h(t)=LSTM(h(t-1),[c(t),s(t),a(t-1)])

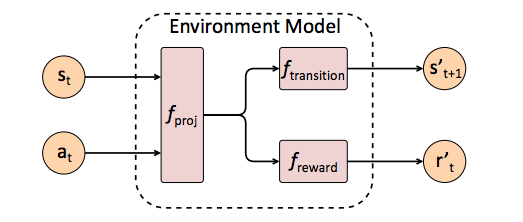

							# Environment model
							s(t+1)=fransition(fproj(st,at))
							r(t+1)=freward(fproj(st,at))

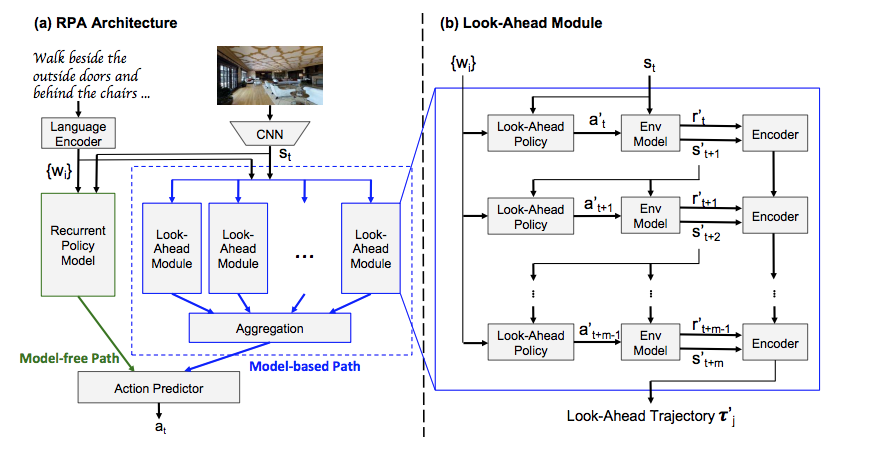

Model Pipeline

Up arrow

Model Learning

  • Pretrain environment model with immitation
  • Freeze environment model and train policy model

							# Immitation learning
							Train environment model with Randomized teacher poclicy;
							Pick demonstration policy with P=0.95;
							Pick Bernouli Meta policy with P=0.05;

							l_transition=E[s'(t+1)-s(t+1)]
							l_reward=E[r'(t+1)-r(t+1)]

							# Policy learning
							r(st,at)=distance(s(t))-distance(s(t+1))
							R(st,at)=discounted total sum of r
							Perform REINFORCE algorithm on R

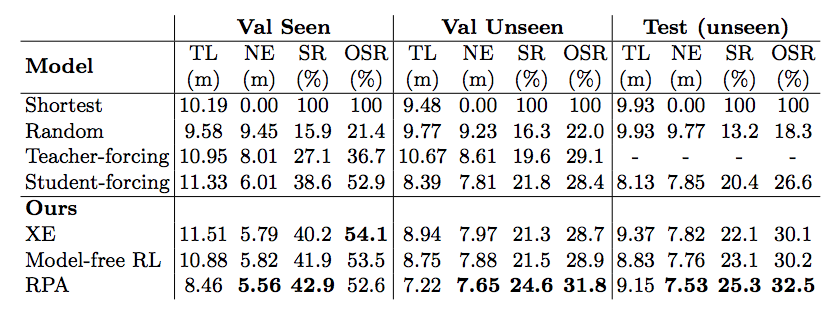

Result

    Evaluation Metrics:
  • Trajectory length
  • Navigation error (distance(vT, destination))
  • Success rate (navigation error < 3m)
  • Oracle success rate (min distance(vk, destination) < 3m)

Up arrow

My current work

  • Modularize unified RL interface for benchmarking important ideas
  • Parallelize RL codebase for faster iteration
  • Try new ideas on indoor navigation

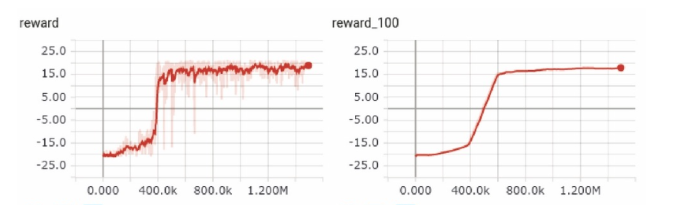

Benchmarking Efforts

  • Verify code correctness
  • Building blocks

Up arrow Up arrow

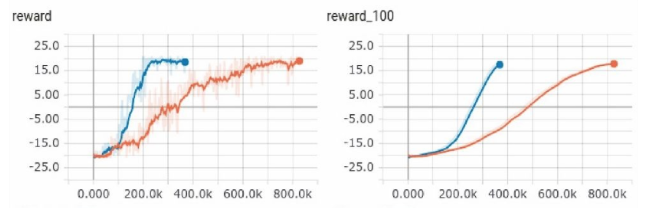

Vanilla DQN & 2-step unrolling DQN;

Advanced DQNs

Up arrow Up arrow

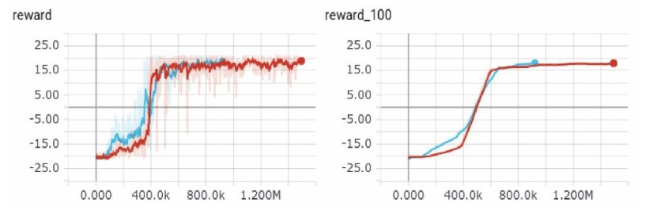

Double DQN & duelling DQN;

Up arrow

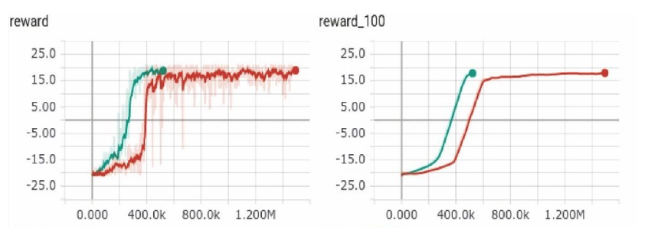

Prioritized Experience Replay;

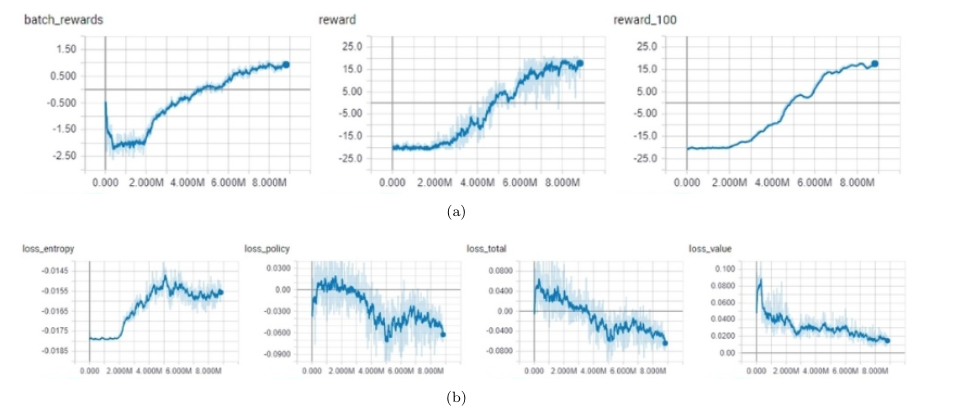

Policy-based methods and its variance

Up arrow

Up arrow

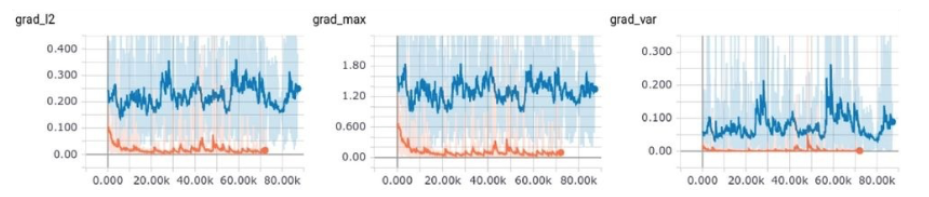

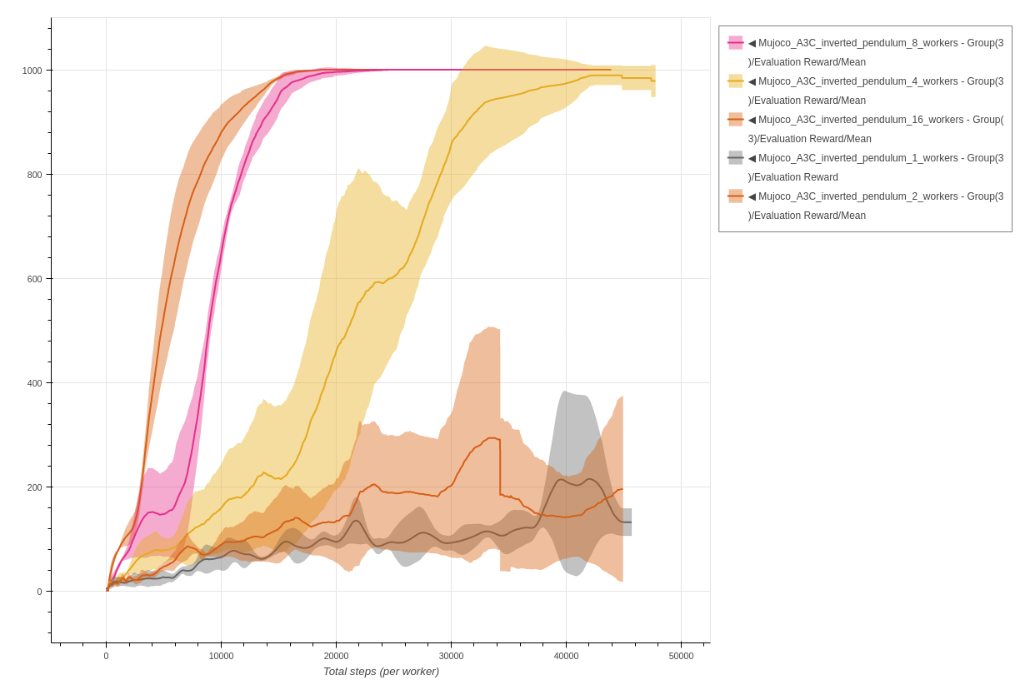

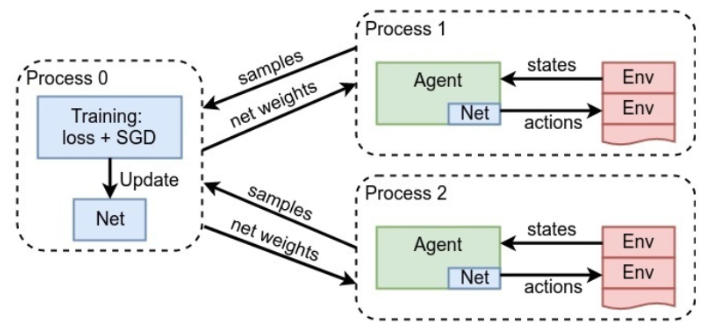

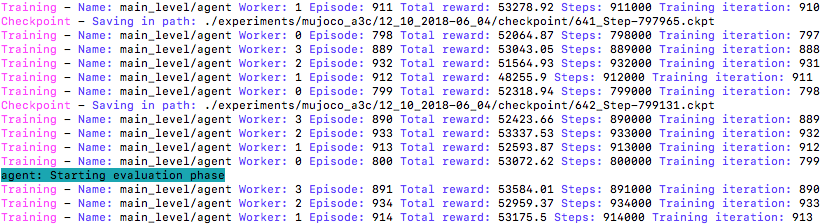

Parallelization

  • Data Parallelism
  • Gradient Parallelism

Up arrow Up arrow Up arrow

Develop new ideas

Examples

  • Improve sample efficiency
  • Develop explorative agents
  • Consider tasks with sparse rewards
  • Multi-agent communication

THE END

- DRL is a fast-developing research area
- DRL is challenging

Up arrow Up arrow
